E-CLIK ACTIVE PRO | DEFENDER HD11
The most advanced suspension available for the Can-Am Defender HD11. The SDI E-CLIK Active PRO Suspension System is a semi-active electronic suspension that continuously monitors vehicle movement and automatically adjusts shock damping 500 times per second.
Whether you're hauling cargo, towing, trail riding, or driving aggressively across rough terrain, E-CLIK Active PRO constantly adapts to changing conditions—delivering exceptional comfort, stability, and control without manual shock adjustments.
Work smarter. Ride harder. Let the suspension do the thinking.
Why Upgrade to Active PRO?
Traditional suspension is always a compromise. Once the shocks are adjusted, they're expected to perform the same whether you're empty, fully loaded, crawling over rocks, or driving at speed.
The SDI E-CLIK Active PRO System eliminates that compromise by automatically adjusting suspension damping in real time based on terrain, vehicle movement, load, steering, braking, and throttle input.
E-CLIK vs. E-CLIK Active PRO
| Feature | E-CLIK | E-CLIK Active PRO |
|---|---|---|
| Rebuildable Performance Shocks | ✓ | ✓ |
| Electronic Shock Adjustment | ✓ | ✓ |
| Comfort / Sport / Heavy Modes | ✓ | Automatic Driving Modes |
| Independent Front & Rear Adjustment | ✓ | ✓ |
| In-Cab Touchscreen Controller | — | ✓ |
| Semi-Active Suspension | — | ✓ |
| Automatic Damping Adjustment | — | ✓ |
| Adjusts Up To 500 Times Per Second | — | ✓ |
| Advanced Driver Tuning | — | ✓ |
Three Automatic Driving Modes
Trail
Optimized for technical terrain, job sites, and lower-speed driving where ride comfort and traction are the priority.
Street
Balanced damping for everyday driving, improved stability, and enhanced control under varying loads.
Desert
Maximum suspension response for aggressive off-road driving, rough terrain, and higher speeds.
Intelligent Suspension Control
At the heart of the system is a high-speed ECU and integrated 8-axis IMU that continuously analyzes vehicle movement and adjusts each shock independently.
The system automatically responds to:
- Terrain changes
- Vehicle load
- Steering input
- Throttle position
- Braking forces
- Vehicle pitch and roll
The result is a suspension system that's always optimized for the conditions you're driving in.
PRO Tuning Interface

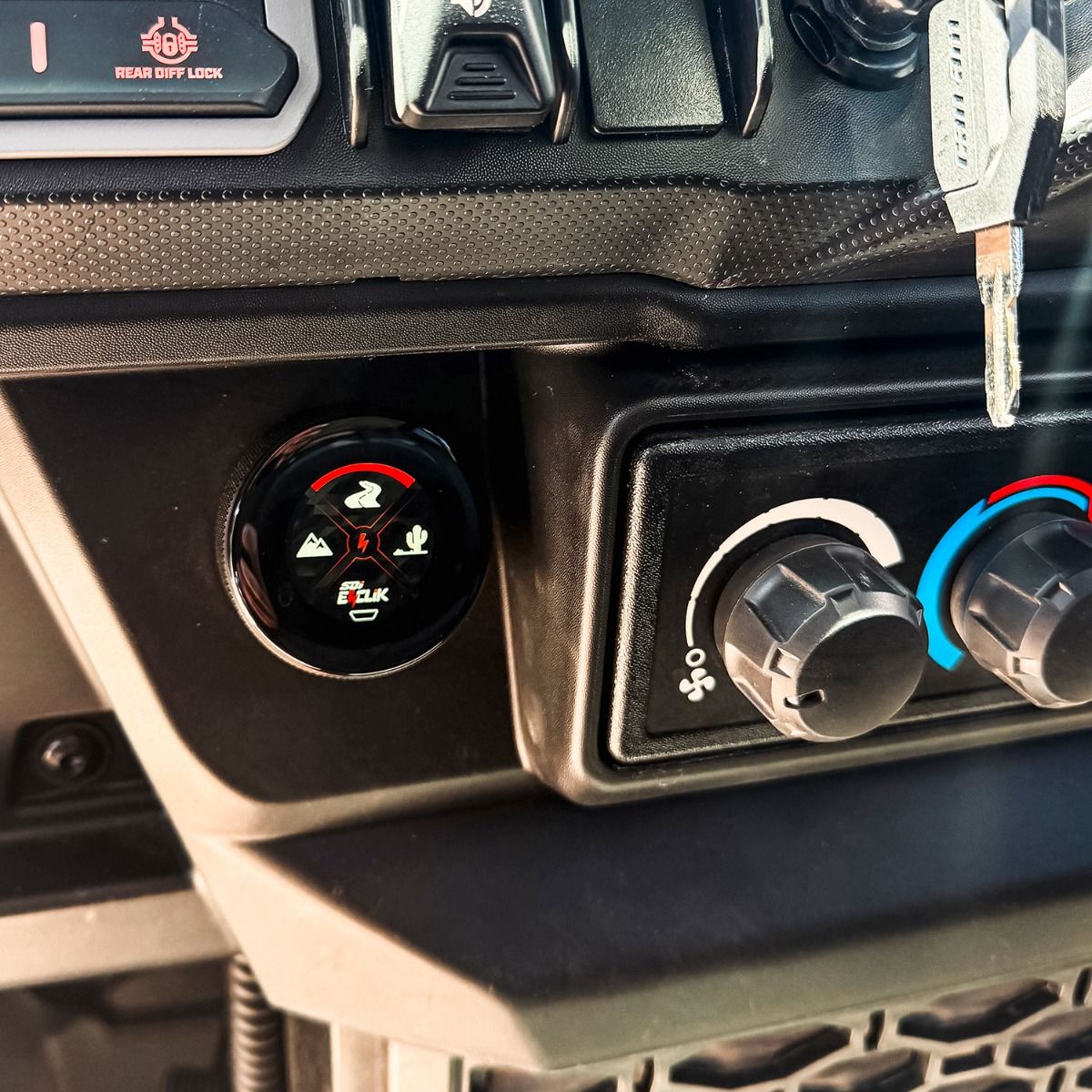

For drivers who want complete control, the included touchscreen controller allows advanced suspension tuning directly from the cab.
Adjust:
- Pitch sensitivity
- Roll sensitivity
- Steering sensitivity
- Throttle response sensitivity
- Brake sensitivity
- Rear load compensation
- Front and rear suspension independently
Key Features
- Semi-active electronic suspension
- Automatic damping adjustment up to 500 times per second

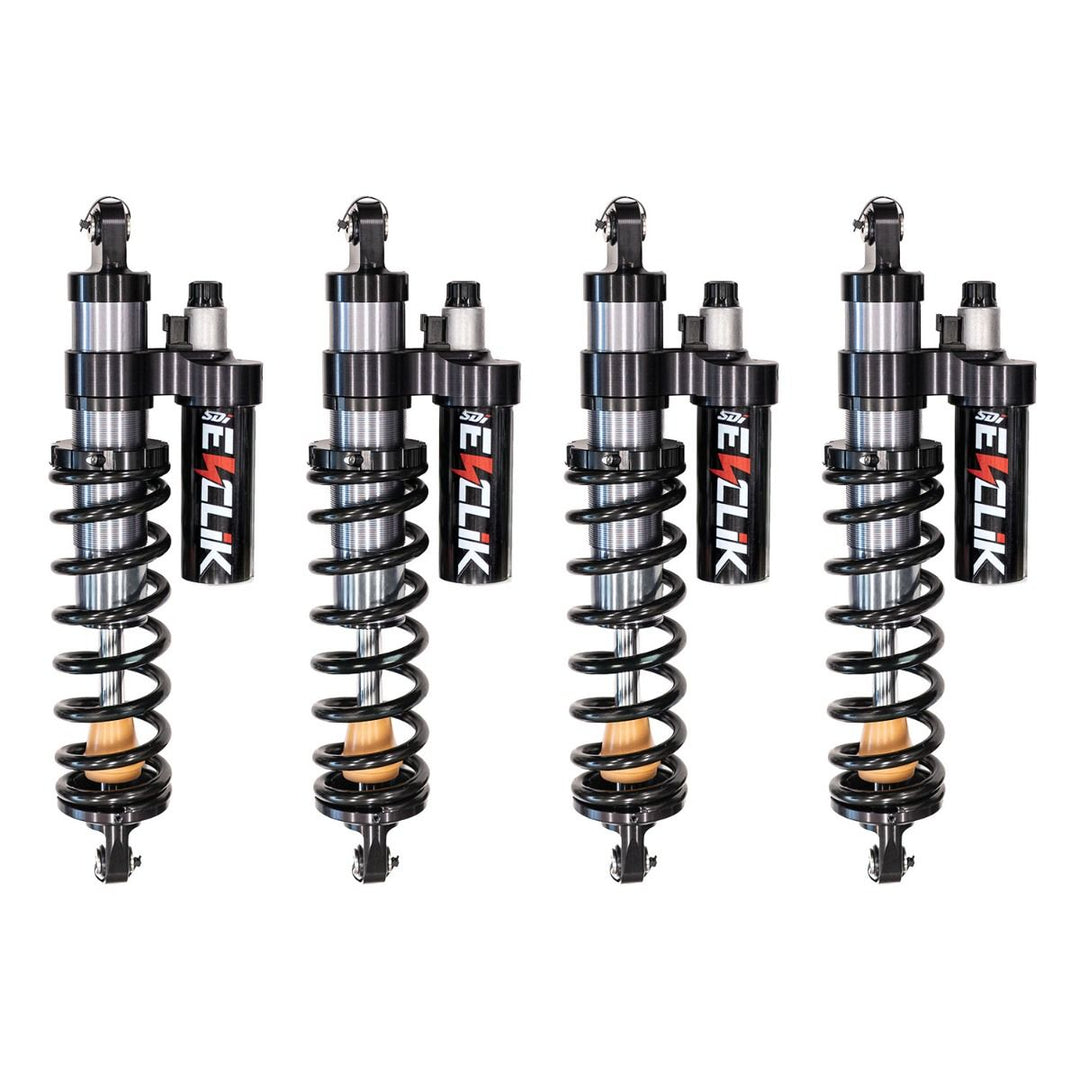

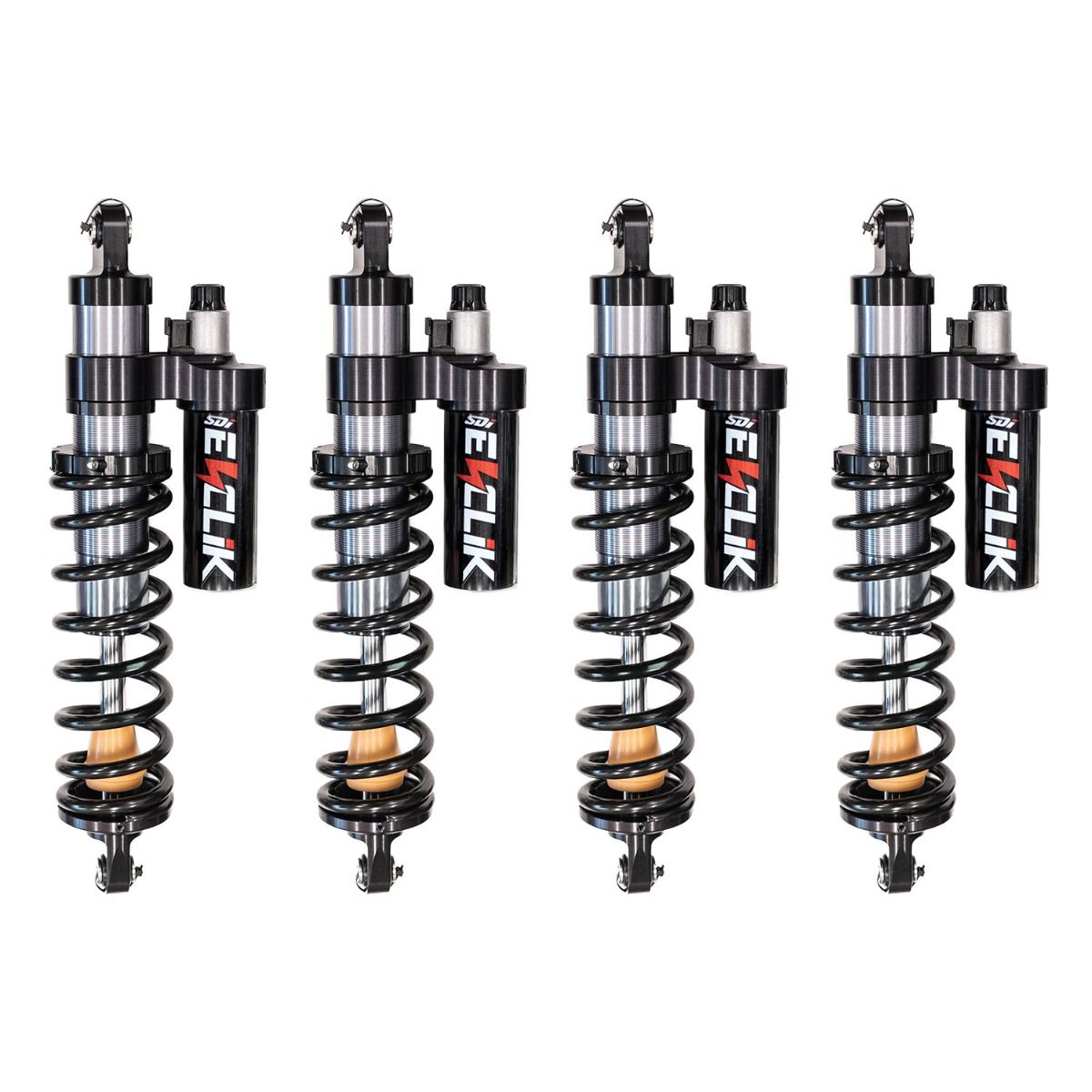

- Premium 2.5" rebuildable piggyback shocks
- High-speed ECU with integrated 8-axis IMU
- In-cab touchscreen controller
- Independent front and rear suspension control
- IP69K-rated electronics
- Sealed connectors and wiring
- 7/8" hardened shock shafts
- Integrated bump zone
- Low-friction seals
- DU piston bushings
- Teflon-lined spherical bearings
- Vehicle-specific tuning for the Can-Am Defender HD11
What You'll Notice
- Automatically adapts to changing terrain
- Smoother ride over rough ground
- Better control with heavy loads
- Improved stability at higher speeds
- Reduced body roll and bottoming
- Less driver fatigue
- Greater confidence in every driving condition
Installation Note: The E-CLIK Active PRO System is a complete semi-active suspension package that includes electronically controlled shocks, an in-cab touchscreen controller, and advanced sensors for fully automatic suspension adjustment.
